IEC 62196-1 Misalignment tester
Ürün ayrıntıları:
| Place of Origin: | China |
| Marka adı: | Kingpo |
| Sertifika: | Calibration Certificate |
| Model Number: | KP-CD213 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | To be Quoted |
| Ambalaj bilgileri: | güvenlik karton paketi veya kontrplak kutu |
| Teslim süresi: | 35 iş günü |
| Payment Terms: | T/T |
| Yetenek temini: | Ayda 1000 set |
|
Detay Bilgi |
|||
| Standart: | IEC 62196-1-Clause 36.3 | Test Amacı: | Fişler yanlış hizalama test cihazı |
|---|---|---|---|
| test sample: | charge gun | Güç: | 100N |
| voltage: | 220V | test istasyonu: | 3 |
Ürün Açıklaması

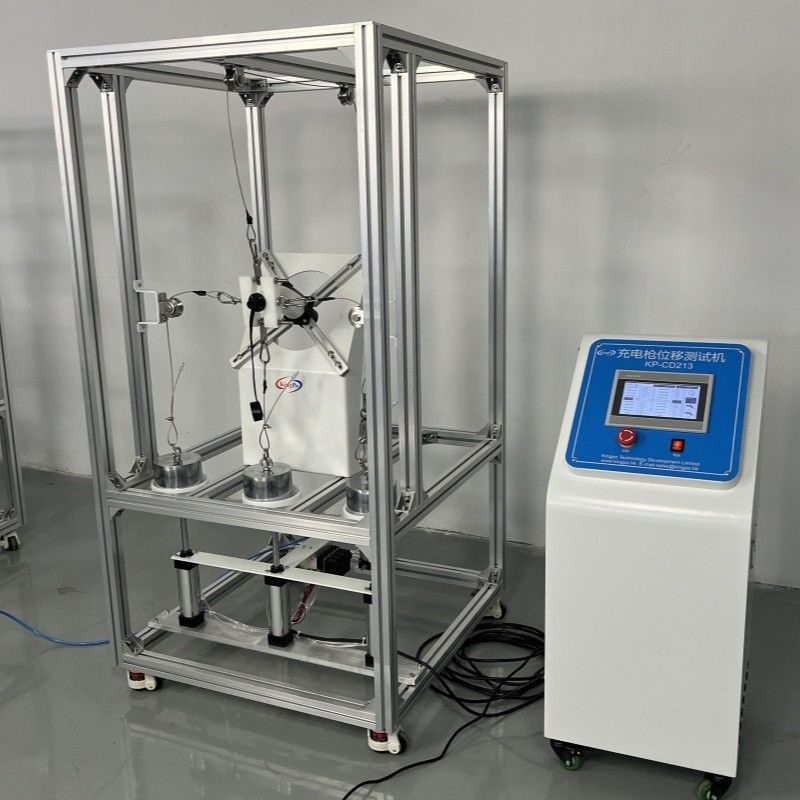

IEC 62196-1 Misalignment tester
Standard: according to IEC62196-1:2022-clause 36.3
Application: It is used to test whether electrical accessories with electronic locking devices such as electric vehicle charging interfaces, industrial plugs and sockets and couplers can withstand the mechanical stress, electrical stress and thermal stress that occur during normal use without excessive wear or other harmful effects. To verify its reliability.
Usage environment: Power supply: AC220V±10%/50-60Hz, 0.5Kw, working temperature 0-40℃, humidity 30%-90%.
| Dimensions | W1000*D1000*H1700mm; weight: about 100kg |
| Station | 3 station |
| Electrical control method | Mitsubishi PLC intelligent integrated control, 7-inch color human-machine touch interface operation |
| Operation mode | Manual or program-controlled operation |
| test times | 0-9999 |
| Drive mode | Pneumatic |
| force | 100N |
| remove time | 0-9999s |
| load time | 0-9999s |
| power | 220V 50/60HZ |
